Specific Parameters for OCLI J Filters
- Thickness: 1.11 mm.
- Usable Aperture: 29 x 29 mm square.
- Dimension: 31.96 mm x 31.96 mm square.
| Filter ID # | Short HPP (77K)
| Long HPP (77K) | Short Slope | Long Slope
| Peak Transmission |
| 1 | 1179
| 1320 | 3.95 | 2.12
| 83.1 |
| 2 | 1178
| 1319 | 3.96 | 2.10
| 83.1 |
| 3 | 1179
| 1320 | 3.95 | 2.11
| 83.0 |
| 4 | 1179
| 1320 | 3.96 | 2.12
| 83.2 |
| 5 | 1179
| 1320 | 3.96 | 2.10
| 82.9 |
| 6 | 1179
| 1321 | 3.97 | 2.10
| 83.1 |
All values given in nm or percentages.

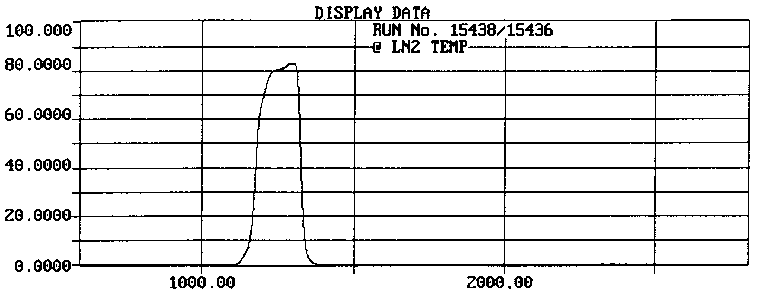

Transmission curves of witness piece
François Piché
Latest Revision: August 14, 1997
